Zhongyang Sams Plate Bending Rolls

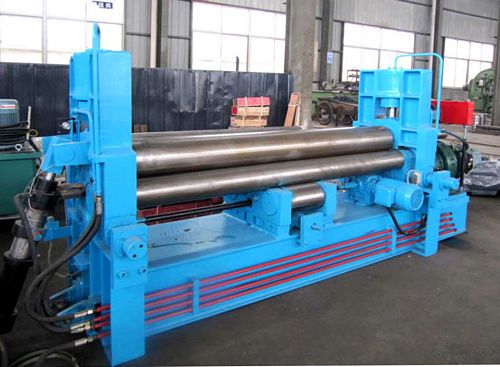

China W11S-6x2000 Universal Plate Bending Roll


New, China W11S-6x2000 Universal Plate Bending Roll

  • Rolling capacity 6 x 2000mm (at dia 500mm)
  • Prebending capacity 4 x 2000mm (at dia 500mm)
  • Length of working rolls 2100mm
  • Plate width 2000mm
  • Top roll pressure 25 ton
  • Width of straight ends at full loading capacity ≤2.5 Plate Thickness
  • Top roll diameter 195mm
  • Bottom roll diameter 125mm
  • Distance between bottom rolls center-to-center 160mm
  • Rolling speed ≈3.5 m/min
  • No. of supporting roller: 1 group, 4 rollers/group
  • Top roll pressure speed ≈120 mm/min
  • Main motor 3 kw
  • Hydraulic motor 2.2 kw
  • Motor for shifting 0.75 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
