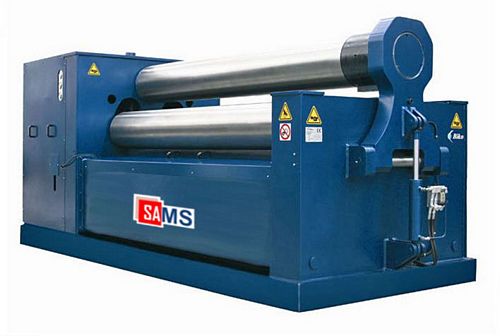

New, Sams B3 6050 Synchronized 3-Roll Double Pinch Plate Bending Machine
- Length of rolls 6000mm
- Rolling capacity (cold) 20mm (at diameter 2500mm)
- Prebending capacity (cold) 15mm (at diameter 2500mm)
- Rolling capacity (cold) 16mm (at diameter 650mm)
- Prebending capacity (cold) 13mm (at diameter 650mm)
- Material yield strength 260 N/mm2
- No. of rolls: 3
- Top roll diameter 500mm
- Bottom rolls diameter 450mm
- Powered driving rolls: 3 (directly splined on the roll shaft)
- Surface speed compensation: automatic
- Rolling speed 5 mt/min
- Rolls movement adjustment: hydraulic
- Main motor ES 50 HP
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
