Sams B4 2530 Synchronized 4-Roll CNC Double Pinch Plate Bending Machine

NHRBK051:

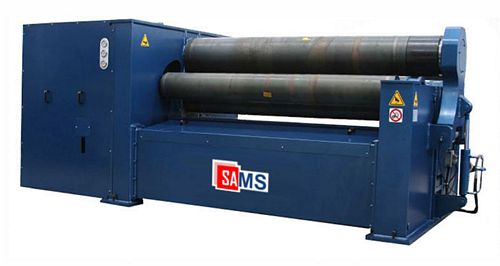

New, Sams B4 2530 Synchronized 4-Roll CNC Double Pinch Plate Bending Machine

  • Length of rolls 2500mm
  • Rolling capacity (cold) 22mm (at dia 1500mm)
  • Prebending capacity (cold) 16mm (at dia 1500mm)
  • Yield strength 260N/mm2
  • Rolling capactiy (cold) 16mm (at dia 390mm)
  • Prebending capacity (cold) 12mm (at dia 390mm)
  • Cone capacity by continuous rolling = 60% of prebending thickness
  • Cone capacity by pressing = 100% of prebending thickness
  • No. of rolls: 4
  • Top roll diameter 300mm
  • Bottom roll diameter 280mm
  • Side rolls diameter 220mm
  • Power driving rolls: 2 (directly splined on the roll shaft)
  • Surface speed: automatic
  • Rolling speed 5 mt/min
  • Rolls movement adjustment: hydraulic
  • Main motor ES 15 HP
  • 415 Volts/3 Phase/50 Cycle
  • Weight approximately 9.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
