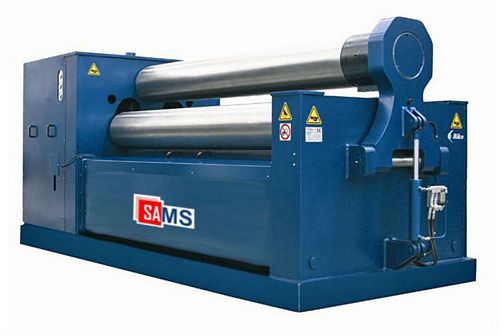

New, Sams B3 4070 Synchronized 3-Roll Double Pinch Plate Bending Machine
- Length of rolls 4000mm
- Rolling capacity (cold) 60mm (at dia 3500mm)
- Prebending capacity (cold) 50mm (at dia 3500mm)
- Rolling capacity (cold) 50mm (at dia 910mm)
- Prebending capacity (cold) 45mm (at dia 910mm)
- Cone capacity by continuous rolling = 60% of prebending thickness
- Cone capacity by pressing = 100% of prebending thickness
- No. of rolls: 3
- Top roll diameter 700mm
- Bottom rolls diameter 630mm
- Powered driving rolls: 3 (directly splined on the roll shaft)
- Surface speed: automatic
- Rolling speed 5 mt/min
- Rolls movement adjustment: hydraulic
- Main motor ES 150 HP
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Plate Bending Rolls Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
