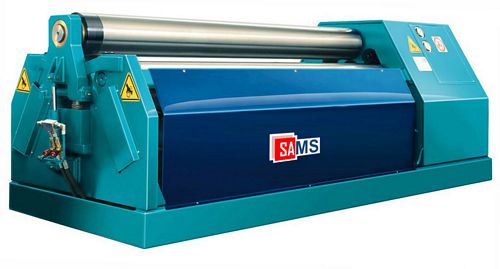

Sams B4 2524 4-Roll Plate Bending Rolls


New, Sams B4 2524 4-Roll Plate Bending Rolls

  • Length of rolls 2550mm
  • Rolling capacity (cold) 10mm (at dia 1200mm)
  • Prebending capacity (cold) 8mm (at dia 1200mm)
  • Rolling capacity (cold) 8mm (at dia 290mm)
  • Prebending capacity (cold) 5mm (at dia 290mm)
  • Yield strength  260 N/mm2
  • Cone capacity by continuous rolling = 60% of prebending thickness
  • Cone capacity by pressing = 100% of prebending thickness
  • No. of rolls: 4
  • Top roll diameter 240mm
  • Bottom rolls diameter 220mm
  • Powered driving rolls: 2
  • Hydraulic motors: 2 (directly splined on the rolls shaft)
  • Surface speed: automatic by hydraulic unit
  • Rolling speed 5 mt/min
  • Rolls movement adjustment: hydraulic
  • Main motor ES 10 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
