Zhongyang Sams Plate Bending Rolls

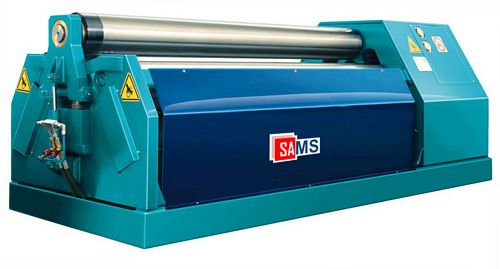

Sams B4 3128 4-Roll Double Pinch Plate Bending Machine


New, Sams B4 3128 4-Roll Double Pinch Plate Bending Machine

  • Length of rolls 3100mm
  • Rolling capacity 10mm (at 1425 diameter)
  • Prebending capacity 8mm (at 1425 diameter)
  • Prebending capacity 6mm (at 371 diameter)
  • Top roll diameter 285mm
  • Bottom roll diameter 260mm
  • Side rolls diameter 200mm
  • Main motor 12.5 Hp
  • Overall Dimensions: 5,100 mm (L) x 1,200 mm (W) x 1,100 mm (H)
  • Weight approximately 8.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
