Zhongyang Sams Plate Bending Rolls

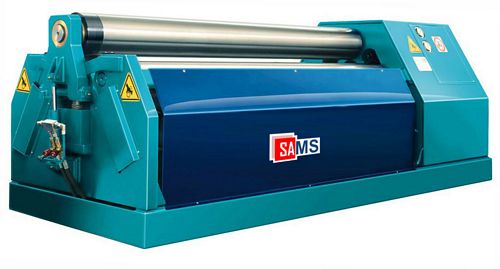

Sams B4 2514 4-Roll Double Pinch Plate Bending Machine


New, Sams B4 2514 4-Roll Double Pinch Plate Bending Machine

  • Length of rolls 2500mm
  • Rolling capacity 3mm (at 725 diameter)
  • Prebending capacity 2mm (at 725 diameter)
  • Prebending capacity 2mm (at 189 diameter)
  • Top roll diameter 145mm
  • Bottom roll diameter 130mm
  • Side rolls diameter 130mm
  • Main motor 5 Hp
  • Overall Dimensions: 3,400 mm (L) x 900 mm (W) x 1,000 mm (H)
  • Weight approximately 4.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
