Zhongyang Sams Plate Bending Rolls

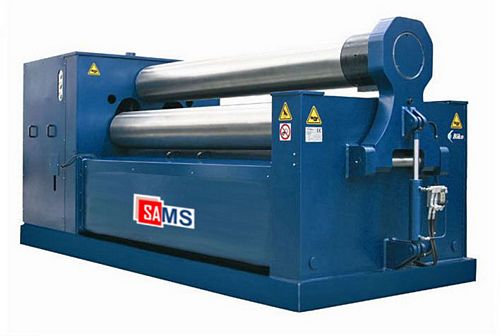

Sams B3 3146 Synchronized 3-Roll Double Pinch Plate Bending Machine

NHRBK006:

New, Sams B3 3146 Synchronized 3-Roll Double Pinch Plate Bending Machine

  • Length of rolls 3050mm
  • Rolling capacity (cold) 40mm
  • Prebending capacity (cold) 32mm
  • Cone capacity by continuous rolling = 60% of prebending thickness
  • Cone capacity by pressing = 100% of prebending thickness
  • Number of rolls: 3
  • Top roll diameter 460mm
  • Bottom rolls diameter 420mm
  • Powered driving rolls: 3 (directly splined on the roll shaft)
  • Surface speed: automatic
  • Rolling speed 5 mt/min
  • Rolls movement adjustment: hydraulic
  • Main motor ES 40 HP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
