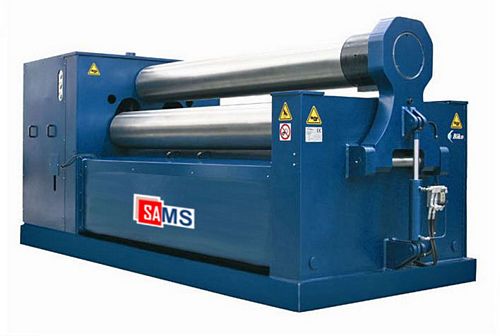

New, Sams B3 3138 Synchronized 3-Roll Double Pinch Plate Bending Machine
- Length of rolls 3050mm
- Rolling capacity (cold) 25mm (at diameter 1900mm)
- Prebending capacity (cold) 20mm (at diameter 1900mm)
- Material yield strength 260 N/mm2
- Cone capacity by continuous rolling: 60% of prebending thickness
- Cone capacity by pressing: 100% of prebending thickness
- Number of rolls: 3
- Top roll diameter 380mm
- Bottom rolls diameter 350mm
- Powered driving rolls: 3 (directly splined on the roll shaft)
- Surface speed compensation: automatic
- Rolling speed 5 Mt/min
- Rolls movement adjustment: hydraulic
- Main motor ES 30 HP
- Overall Dimensions: 5,900 mm (L) x 1,900 mm (W) x 1,900 mm (H)
- Weight approximately 15 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Plate Bending Rolls Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
Zhongyang is the place to look for quality machine tools at bargain prices.
