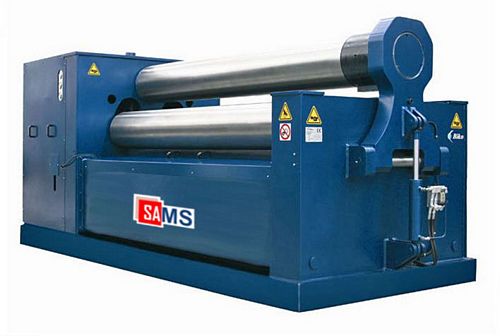

New, Sams B3 3162 Synchronized 3-Roll Double Pinch Plate Bending Machine
- Length of rolls 3050mm
- Rolling capacity 70mm (Mild Steel at dia 3100mm)
- Prebending capacity 60mm (Mild Steel at dia 3100mm)
- Rolling capacity 60mm (360 N/mm^2 Steel at dia 3100mm)
- Prebending capacity 51mm (360 N/mm^2 Steel at dia 3100mm)
- Cone capacity by continuous rolling = 60% of prebending thickness
- Cone capacity by pressing = 100% of prebending thickness
- Top roll diameter 620mm
- Bottom rolls diameter 570mm
- No. of rolls: 3
- Drive system: directly splined on the roll shaft
- Powered driving rolls: 3
- Surface speed compensation: automatic
- Rolling speed 5 Mt/min
- Rolls movement adjustment: hydraulic
- Main motor ES 100 HP
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Plate Bending Rolls Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
