Zhongyang Sams Plate Bending Rolls

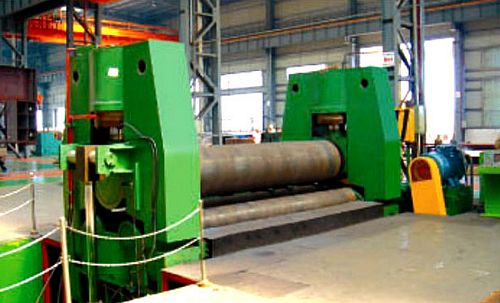

China TXW11Y-80x3000 Hydraulic Symmetrical Plate Bending Machine


New, China TXW11Y-80x3000 Hydraulic Symmetrical Plate Bending Machine

  • Plate thickness 80mm
  • Plate width 3000mm
  • Pressure 1050 ton
  • Length of working rolls 3100mm
  • Full loaded length of rest linear ≤2 plate thickness
  • Top toll diameter 760mm
  • Bottom rolls diameter 460mm
  • Central distance of lower roller 880mm
  • Rolling speed about 4 m/min
  • Pressing speed of upper roller about 120 m/min
  • Diameter of support roller 460mm
  • No. of support rollers 4
  • Group of support rollers 1
  • Main motor 90 kW
  • Hydraulic motor 37 kW
  • Floating motor 18.5 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
