Sunshine Innovation Sams Hydraulic Press

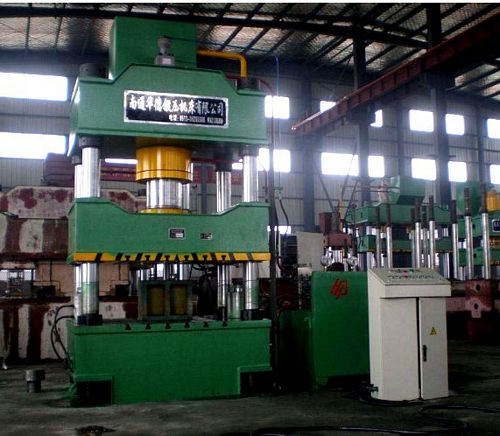

China YHD32-400T Hydraulic Press

NHPHD010:

New, China YHD32-400T Hydraulic Press

  • Daylight between columns (L-R): 2000mm
  • Effective table size (F-B): 1000mm
  • Sliding platen stroke 800mm
  • Max daylight 1250mm
  • Knock-out cylinder stroke 300mm
  • Max down-pressing force as applied to sliding platen by the cylinders 4000 KN
  • Knock-out force 630 KN
  • Max hydraulic system pressure 25 Mpa
  • Hydraulic pump 80 L/min
  • Sliding platen speed range: No-load approach speed (down) 100 mm/sec; Work speed (down) 5-7 mm/sec; Return speed (up) 45 mm/sec
  • Motor 22 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used hydraulic press (hydraulic forming machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
