Zhongyang Sams Hydraulic Press

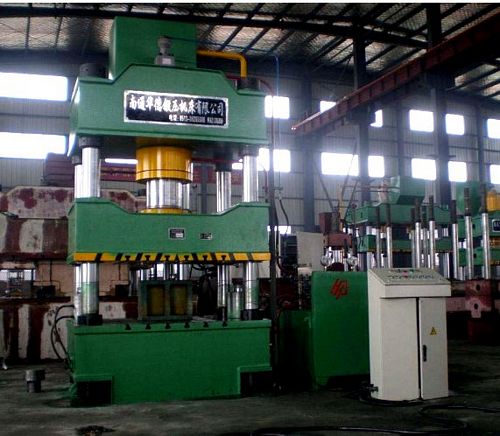

China YHD32-200T Hydraulic Press

NHPHD008:

New, China YHD32-200T Hydraulic Press

  • Daylight between columns (L-R): 1000mm
  • Effective table size (F-B): 900mm
  • Sliding platen stroke 700mm
  • Max daylight 1100mm
  • Knock-out cylinder stroke 250mm
  • Max down-pressing force as applied to sliding platen by the cylinders 2000 KN
  • Knock-out force 400 KN
  • Max hydraulic system pressure 25 MPa
  • Hydraulic pump 40 L/min
  • Sliding platen speed range: No-load approach speed (down) 100 mm/sec; Work speed (down) 8 mm/sec; Return speed (up) 52 mm/sec
  • Motor 15 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used hydraulic press (hydraulic press machine, mechanical press machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
