Zhongyang Sams Hydraulic Press


China YHD27-315T Hydraulic Press

NHPHD007:

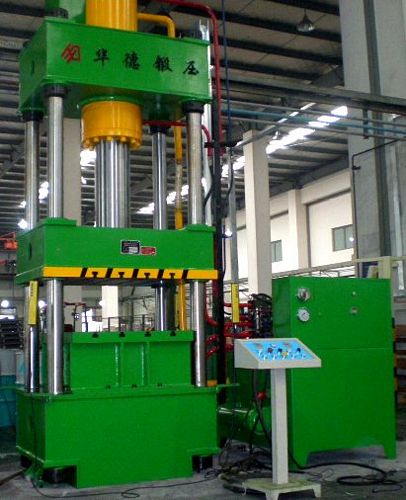

New, China YHD27-315T Hydraulic Press

  • Effective table size (F-B): 1200mm
  • Daylight between columns (L-R): 1200mm
  • Cushion size 800 x 800mm
  • Sliding platen stroke 800mm
  • Max daylight 1250mm
  • Cushion stroke 350mm
  • Max down-pressing force as applied to sliding platen by the cylinders 3150 KN
  • Cushion force 1000 KN
  • Max hydraulic system pressure 25 MPa
  • Hydraulic pump 63 L/min
  • Sliding platen speed range: No-load approach speed (down) 100 mm/sec; Work speed (down) 8-10 mm/sec; Return speed (up) 60 mm/sec
  • Motor 18.5 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used hydraulic press (hydraulic press machine, mechanical press machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
