Zhongyang Sams Hydraulic Press


China YHD32-315T Four Columns Hydraulic Press

NHPHD005:

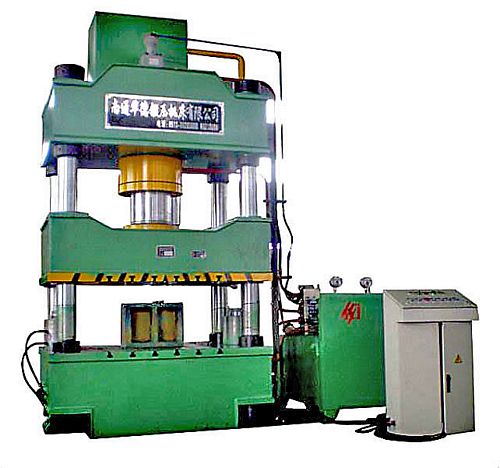

New, China YHD32-315T Four Columns Hydraulic Press

  • Effective table size (F-B): 1260mm
  • Daylight between columns (L-R): 1200mm
  • Sliding platen stroke 800mm
  • Max daylight 1250mm
  • Knock-out cylinder stroke 300mm
  • Max down-pressing force as applied to sliding platen by the cylinders 3150 KN
  • Knock-out force 630 KN
  • Max hydraulic system pressure 25 MPa
  • Hydraulic pump 63 L
  • Sliding platen speed range: No-load approach speed (down) 100 mm/sec; Work speed (down) 6-8 mm/sec; Return speed (up) 60 mm/sec
  • Motor 18.5 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used hydraulic press (hydraulic press machine, mechanical press machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
