Zhongyang Sams Ironworker

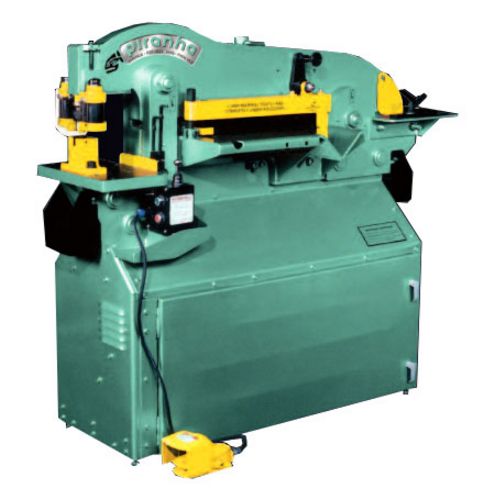

Piranha XP2 Ironworker

NHIZC001:

New, Piranha XP2 Ironworker

  • Throat depth 127mm
  • Open height 292mm
  • Closed height without die block 196mm
  • Stroke length 95mm
  • Platen table size (DxW) 203 x 406mm
  • Punch (tons) 450 KN; Hole size: (Max material) 20.6mm (19mm); Max hole size: (Max material) 76mm (4mm)
  • Plate shear: 280-330mm Long, 19x152mm, 12x254mm, 6x330mm
  • Angle shear: 89 x 89 x 8mm
  • Bar shear: Round (min to max): 6-35mm, Square (min to max): 12-25mm
  • Coper-Notcher (tons) 360 KN; Max 57 x 76 x 6mm
  • Bending attachment 152mm; (optional length) 304mm
  • Punch end strokes per min 30 @ 12mm
  • Approx work station height 1067mm
  • Hydraulics pump 13 LPM; System R/V bar 2700 PSI
  • Fluid capacity 45 liter
  • Overall Dimensions: 1,397 mm (L) x 609 mm (W) x 1,473 mm (H)
  • Weight approximately 771 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
