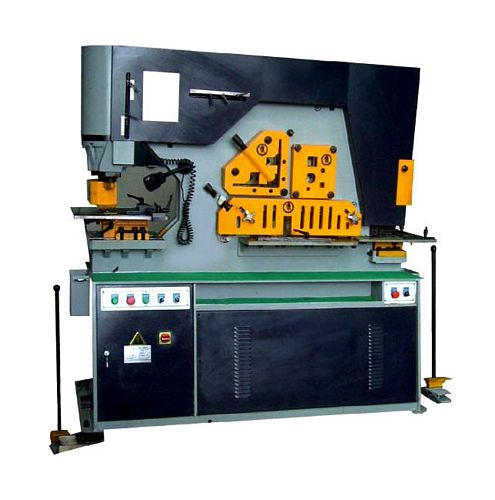

China Silver SIW-110 Ironworker

NHIWW003:

New, China Silver SIW-110 Ironworker

  • Pressure 110 ton
  • Max cutting thickness 25mm
  • Plate strength ≤450 N/mm²
  • Cutting angle 8°
  • Shearing size of 1 stroke: 25 x 330mm; 16 x 600mm
  • Ram stroke 80mm
  • No. of strokes 6 cpm
  • Throat depth 400mm
  • Punching thickness 25mm
  • Max punching diameter 35mm
  • Round bar 60mm
  • Square bar 50 x 50mm
  • Equal angle: 90° 160 x 160 x 14mm; 45° 80 x 80 x 7mm
  • T-Bar: 90° 160 x 160 x 14mm; 45° 80 x 80 x 10mm
  • Joist 200 x 102 x 9mm
  • Channel 200 x 75 x 9mm
  • Main motor 7.5 kw
  • Overall Dimensions: 2,355 mm (L) x 960 mm (W) x 2,090 mm (H)
  • Weight approximately 4.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
