Zhongyang Sams Ironworker


China Silver SIW-55 Ironworker

NHIWW001:

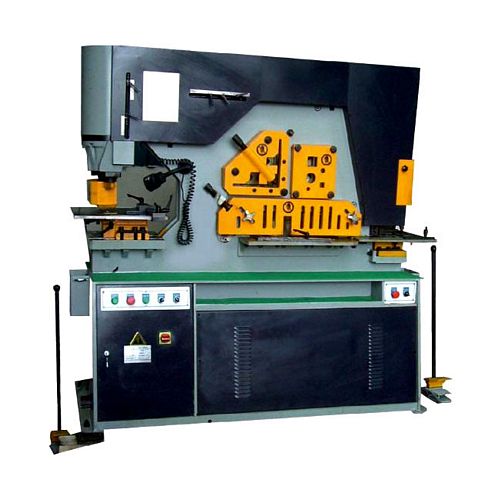

New, China Silver SIW-55 Ironworker

  • Pressure 55 ton
  • Max cutting thickness 16mm
  • Plate strength ≤450 N/mm²
  • Cutting angle 7°
  • Shearing size of 1 stroke: 16 x 250mm; 8 x 400mm
  • Ram stroke 80mm
  • No. of strokes 8 cpm
  • Throat depth 300mm
  • Punching thickness 16mm
  • Max punching diameter 25mm
  • Round bar 45mm
  • Square bar 40 x 40mm
  • Equal angle: 90° 125 x 125 x 12mm; 45° 70 x 70 x 8mm
  • T-Bar: 90° 120 x 120 x 12mm; 45° 60 x 60 x 8mm
  • Joist 126 x 74 x 5mm
  • Channel 126 x 53 x 5.5mm
  • Main motor 4 kw
  • Overall Dimensions: 1,640 mm (L) x 730 mm (W) x 1,770 mm (H)
  • Weight approximately 1.6 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
