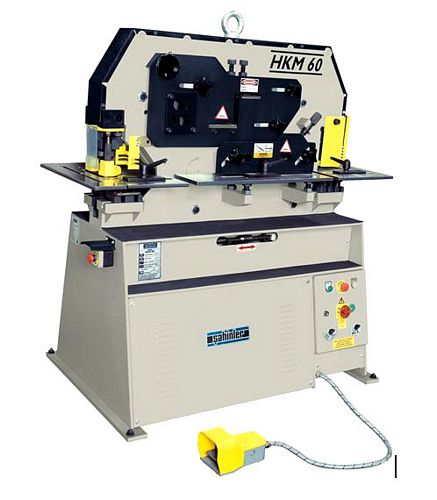

Sahinler HKM-60 Hydraulic Steel Worker

NHISL002:

New, Sahinler HKM-60 Hydraulic Steel Worker

  • Pressure 60 ton
  • Punching: Diameter x max thickness Ø28 x 15mm
  • Diameter x thickness Ø38 x 11mm
  • Max diameter Ø110 x 3mm
  • Stroke 55mm
  • Stroke count in (20mm) x25
  • Throat depth 220mm
  • Working height 955mm
  • Steel bar shearing: Round Ø40mm; Square 35mm
  • Angle shear @ 90°: 120 x 120 x 12mm
  • Angle shear @ 45°: 80 x 8mm
  • Working height 1155mm
  • Sheet metal shear with angle 80 x 10mm
  • Sheet metal shear 200 x 20mm; 300 x 15mm
  • Blade length 317mm
  • Working height 955mm
  • Notching: (Thickness x width x depth) 10 x 42 x 100mm
  • Working height 955mm
  • Motor 4 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
