Zhongyang Sams Ironworker


China QA34-25 Mechanical Universal Ironworker

NHIJS010:

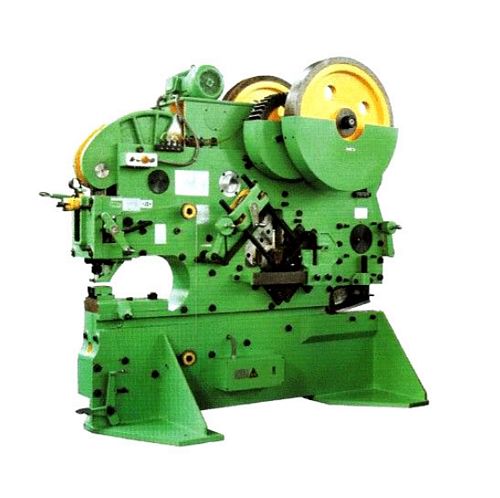

New, China QA34-25 Mechanical Universal Ironworker

  • Punching pressure 110T
  • Max shearing thickness 25mm
  • Plate strength ≤450 N/mm2
  • Shearing angle 11°
  • Flat bar (HxW): 25 x 140mm
  • Round bar 65mm
  • Square bar 55 x 55mm
  • Equal angle: 90° shearing 150 x 150 x 18mm; 45° shearing 110 x 110 x 14mm
  • T bar: 90° shearing 150 x 75 x 18mm
  • Joist 300 x 126 x 9mm
  • Channel 300 x 85 x 7.5mm
  • Ram stroke 36mm
  • No. of strokes 25 times/min
  • Throat depth 600mm
  • Punching thickness 25mm
  • Max punching diameter 35mm
  • Main motor 7.5 kW
  • Overall Dimensions: 3,000 mm (L) x 1,300 mm (W) x 2,500 mm (H)
  • Weight approximately 7.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
