China Q35Y-40E (IW180TE) Hydraulic Ironworker

NHIJS009:

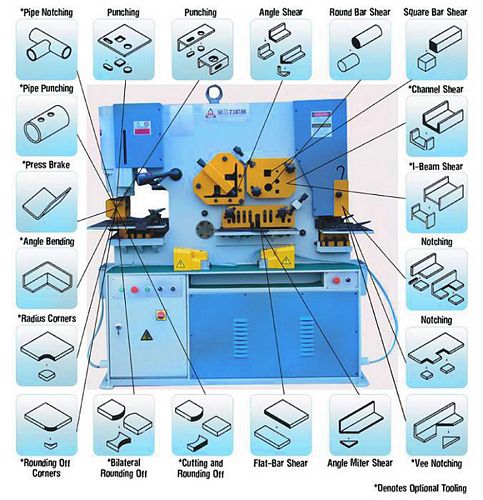

New, China Q35Y-40E (IW180TE) Hydraulic Ironworker

  • Punching pressure 180T
  • Angle iron 200 x 200 x 18mm
  • Max shearing thickness 35mm
  • C/w automatic holders & temperature automatic adjusting system
  • Plate strength ≤450 N/mm2
  • Shearing angle 8°
  • Flat bar (H x W): 35 x 400mm, 25 x 700mm
  • Round bar 70mm
  • Square bar 60 x 60mm
  • Ram stroke 100mm
  • No. of strokes 6 per min
  • Throat depth 600mm
  • Punching thickness 35mm
  • Max punching diameter 40mm
  • Main motor 15 Kw
  • Overall Dimensions: 2,800 mm (L) x 1,160 mm (W) x 2,400 mm (H)
  • Weight approximately 8.4 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
