China Q35Y-30 (IW-140T) Hydraulic Ironworker

NHIJS006:

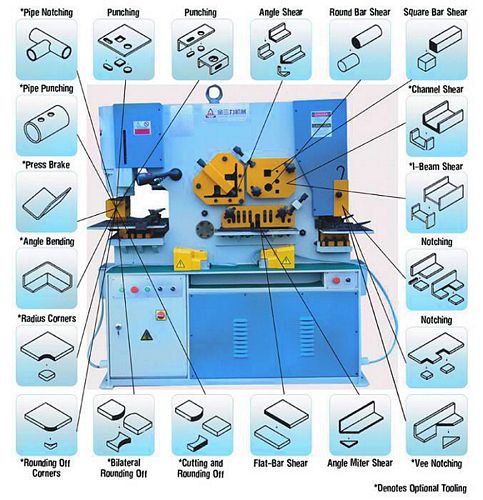

New, China Q35Y-30 (IW-140T) Hydraulic Ironworker

  • Punching pressure 140T
  • Angle iron 180 x 180 x 16mm
  • Max shearing thickness 30mm
  • Plate strength ≤450 N/mm2
  • Shearing angle 8°
  • Flat bar (H x W): 30 x 355mm, 20 x 600mm
  • Round bar 65mm
  • Square bar 55 x 55mm
  • Ram stroke 80mm
  • No. of strokes 6 per min
  • Throat depth 600mm
  • Punching thickness 26mm
  • Max punching diameter 38mm
  • Main motor 11 kW
  • Overall Dimensions: 2,680 mm (L) x 1,060 mm (W) x 2,380 mm (H)
  • Weight approximately 6.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
