Zhongyang Sams Ironworker

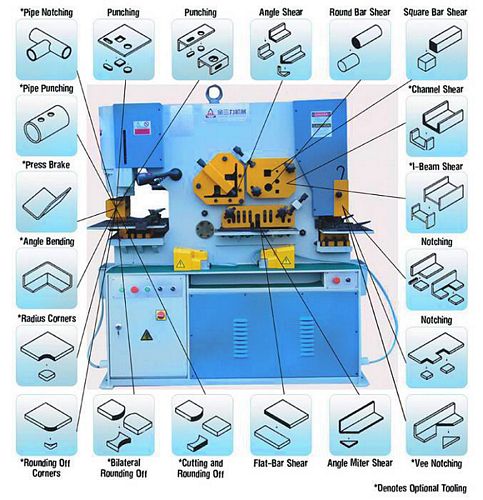

China Q35Y-25E (IW-110TE) Hydraulic Ironworker


New, China Q35Y-25E (IW-110TE) Hydraulic Ironworker

  • Punching pressure 110T
  • Angle iron 160 x 160 x 14mm
  • Max shearing thickness 25mm
  • C/w automatic holders & temperature automatic adjusting system
  • Plate strength  ≤450 N/mm2
  • Shearing angle 8°
  • Flat bar (H x W): 25 x 330mm, 16 x 660mm
  • Round bar 60mm
  • Square bar 50 x 50mm
  • Ram stroke 80mm
  • No. of strokes 6 per min
  • Throat depth 400mm
  • Punching thickness 25mm
  • Max punching diameter 35mm
  • Main motor 7.5 kW
  • Overall Dimensions: 2,350 mm (L) x 980 mm (W) x 2,100 mm (H)
  • Weight approximately 5.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
