Zhongyang Sams Ironworker

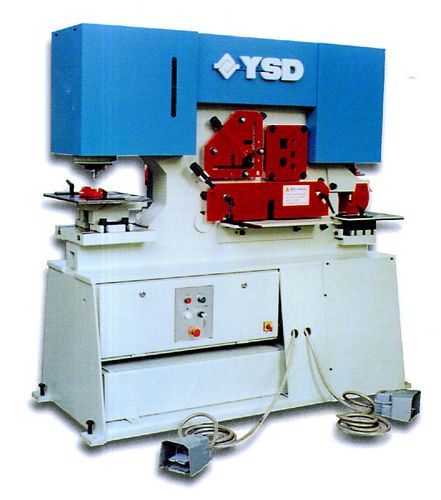

China Q35Y-16 Hydraulic Combined Punching & Shear M/C


New, China Q35Y-16 Hydraulic Combined Punching & Shearing Machine

  • Flat bar shearing 150mm x 16mm / 400mm x 4mm
  • Square bar 28 x 28mm
  • Round bar 30mm dia
  • Joist (type) 10#
  • Channel (type) 10#
  • Angle bar at 90°: 100 x100 x 10mm
  • Punching 20mm dia x 16mm
  • Notching die (LxWxT) 80 x 52 x 6mm
  • Punching force 500 KN
  • Max stroke of the cylinder 60mm
  • Throat depth 240mm
  • Motor power 4 kW
  • Overall Dimensions: 1,420 mm (L) x 690 mm (W) x 1,490 mm (H)
  • Weight approximately 1.3 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
