Zhongyang Sams Ironworker

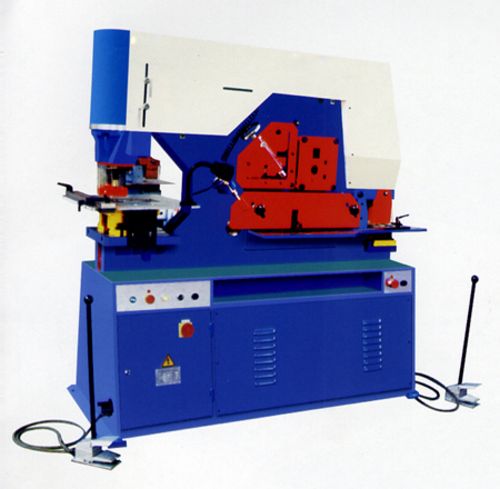

China Q35Y-30 Hydraulic Ironworker


New, China Q35Y-30 Hydraulic Ironworker

  • Pressure 140 Ton
  • Ram Stroke 80 mm, 8 Strokes/min
  • Throat Depth 600 mm
  • Max Punching Diameter 38 mm x Thickness 26 mm
  • Main Motor Power 11 kW
  • Round Bar 65 mm
  • Square Bar 55x55 mm
  • Angle Iron 180x180x16 mm (90 deg)
  • T-Bar 180x180x16 mm
  • I-Beam 280x124x10.5 mm
  • Channel 280x86x11.5 mm
  • Overall Dimensions: 2,355 mm (L) x 960 mm (W) x 2,090 mm (H)
  • Weight approximately 4.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
