China Q35Y-25 Hydraulic Ironworker

NHIEC005:

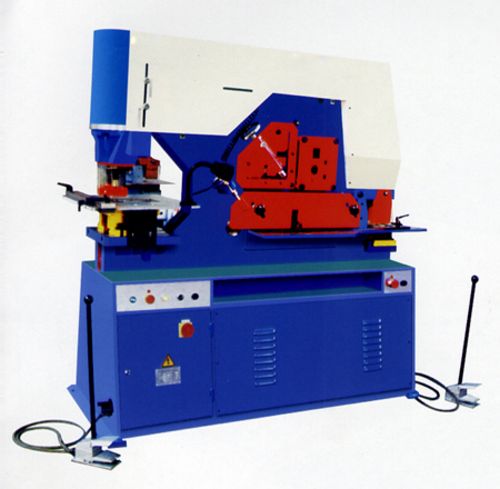

New, China Q35Y-25 Hydraulic Ironworker

  • Pressure 110 Ton
  • Ram Stroke 80 mm, 8 Strokes/min
  • Throat Depth 400 mm
  • Max Punching Diameter 35 mm x Thickness 25 mm
  • Main Motor Power 7.5 kW
  • Round Bar 60 mm
  • Square Bar 50x50 mm
  • Angle Iron 160x160x14 mm (90 deg)
  • T-Bar 160x160x14 mm
  • I-Beam 200x102x9 mm
  • Channel 200x75x9 mm
  • Overall Dimensions: 2,355 mm (L) x 960 mm (W) x 2,090 mm (H)
  • Weight approximately 4.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
