Zhongyang Sams Ironworker

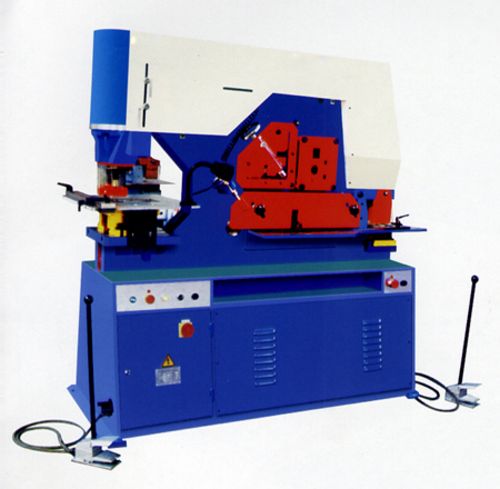

China Q35Y-20 Hydraulic Ironworker

NHIEC004:

New, China Q35Y-20 Hydraulic Ironworker

  • Pressure 75 Ton
  • Ram Stroke 80 mm, 8 Strokes/min
  • Throat Depth 355 mm
  • Max Punching Diameter 30 mm x Thickness 20 mm
  • Main Motor Power 5.5 kW
  • Round Bar 50 mm
  • Square Bar 50x50 mm
  • Angle Iron 140x140x12 mm (90 deg)
  • T-Bar 140x140x12 mm
  • I-Beam 160x86x6 mm
  • Channel 160x60x6.5 mm
  • Overall Dimensions: 1,860 mm (L) x 800 mm (W) x 1,900 mm (H)
  • Weight approximately 2.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
