China Q35Y-16 Hydraulic Ironworker

NHIEA002:

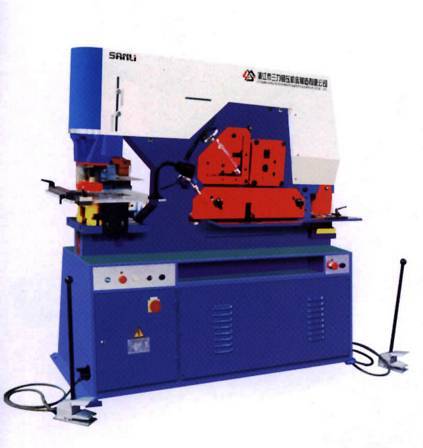

New, China Q35Y-16 Hydraulic Ironworker

  • Pressure 55 Ton
  • Max. Cutting Thickness 16 mm
  • Plate Strength 450 N/mm2
  • Cutting Angle 7°
  • Shearing size of one stroke 16 x 250mm, 8 x 400mm
  • Ram Stroke 80mm
  • Number of Strokes 8cpm
  • Throat Depth 300mm
  • Punching Thickness 16mm
  • Max. Punching Diameter 25mm
  • Power of main motor 4kW
  • Overall Dimensions 1640 x 730 x 1770mm
  • Weight of Machine 1600kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used ironworker (ironworker machine, universal ironworker machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
