Zhongyang Sams Press Brake

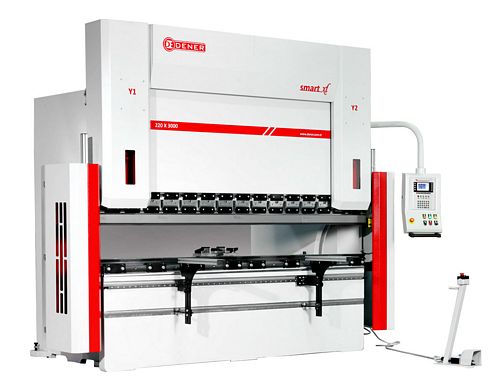

Sams Dener SMART XL 6100mm x 220 ton CNC Hydraulic Press Brake

NHBDN058:

New, Sams Dener SMART XL 6100mm x 220 ton CNC Hydraulic Press Brake

  • Bending length 6100mm
  • Bending capacity 220 ton
  • CNC control: Esa S 530
  • Distance between columns 5100mm
  • Daylight opening 600mm
  • Throat depth 450mm
  • Y axis stroke 350mm
  • Y axis (landing, working, return) speeds: 140/10/130 mm/sec
  • Table height 900mm
  • X axis stroke 650mm
  • X axis working speed 200 mm/sec
  • Main motor 22 kw
  • Oil tank capacity 300 lt
  • Overall Dimensions: 7,100 mm (L) x 1,800 mm (W) x 3,025 mm (H)
  • Weight approximately 20 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used press brake (press brake, pressbrake, hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
