Zhongyang Sams Press Brake

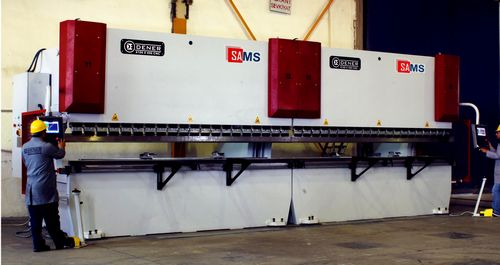

Sams Dener 2 x Puma XL 6050mm x 320 ton CNC Hydraulic Press Brake in Tandem


New, Sams Dener 2 x Puma XL 6050mm x 320 ton CNC Hydraulic Press Brake in Tandem

  • Bending length 6050mm x 2 = 12100mm
  • Bending capacity 320 ton x 2 = 640 ton
  • CNC control: Esa S 550
  • Distance between columns 5100mm (for 1 x Puma XL 6050)
  • Daylight opening 650mm
  • Throat depth 450mm
  • Y axis stroke 400mm
  • Y axis: Landing 140 mm/s; Working 10 mm/s, Returning 130 mm/s
  • X axis stroke 650mm
  • X axis working speed 115 mm/sec
  • R axis stroke 160mm
  • R axis working speed 20 mm/sec
  • Table height 900mm
  • Main motor 30 kw (for 1 x Puma XL 6050)
  • Oil tank capacity 400 lt (for 1 x Puma XL 6050)
  • Overall Dimensions: 14,200 mm (L) x 1,850 mm (W) x 3,070 mm (H)
  • Weight approximately 48 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used press brake (press brake, pressbrake, hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
