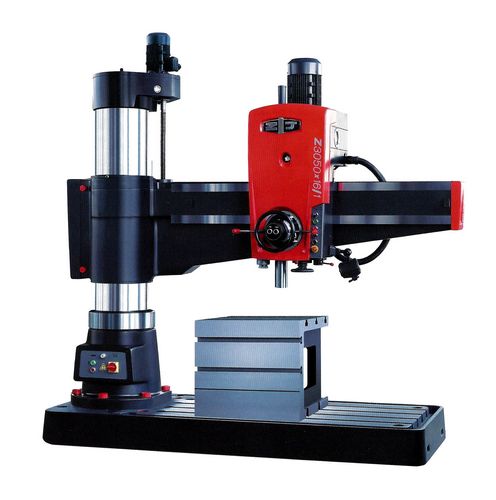

New, China Czech Z3050 x 16/1 Radial Drill (New Design)
- Maximum drilling diameter 50mm
- Distance between spindle axis & column 350-1600mm
- Distance between spindle nose and working surface of base plate 320-1220mm
- Spindle travel 315mm
- Spindle taper Morse No. 5
- Range of spindle speeds 25-2000 rpm (16 steps)
- Range of spindle feeds 0.04-3.2 mm/r (16 steps)
- Worktable dimensions: 630 x 500 x 500 mm
- Travel of spindle head 1250mm
- Max torque of spindle 500 Nm
- Lifting distance of swing arm 580mm
- Power of main motor 4 kW
- Overall Dimensions: 2,500 mm (L) x 1,070 mm (W) x 2,840 mm (H)
- Weight approximately 3.5 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Radial Drill Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
Contact us with your machinery requirements. We are more than willing to help.
