Zhongyang Sams Radial Drill

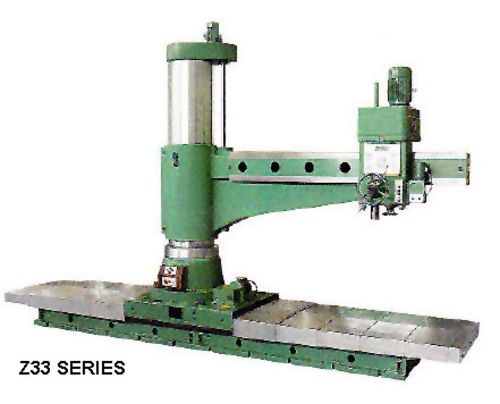

China Czech Z3363x20 Radial Drill

NDRSY025:

New, China Czech Z3363x20 Radial Drill

  • Maximum drilling diameter 65mm
  • Distance between spindle axis & column 450 - 2000mm
  • Spindle travel 400mm
  • Spindle taper No. 5
  • Range of spindle speeds 20 - 1600 rpm (16 steps)
  • Range of spindle feeds 0.04 - 3.2 mm/r (16 steps)
  • Travel of spindle head 1550mm
  • Column longitudinal traverse 2000 / 4000mm
  • Power of main motor 5.5 kW
  • Overall Dimensions: 5,230 mm (L) x 1,450 mm (W) x 3,291 mm (H)
  • Weight approximately 17 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
