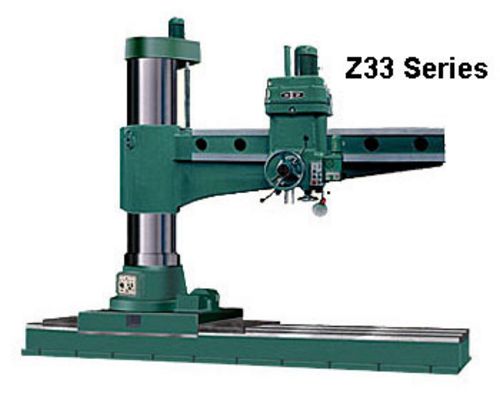

New, China Czech Z33100x100 Travelling Type Radial Drill
- Longitudinal travels 10000mm
- Spindle head cross travels 2580mm
- Spindle travels 500mm
- Arm vertical travels 1250mm
- Arm swivel 360°
- Distance of spindle to floor: max 3015mm; min 1355mm
- Distance of spindle to column center: max 3150mm; min 570mm
- Spindle taper MT6
- Spindle speeds 8 - 1000 r/min, 22 steps
- Spindle torque 2450 N.m
- Spindle thrust 49 x 10³ N
- Max drilling diameter 100mm
- Feed rates 0.06 - 3.2 mm/min, 16 steps
- Arm vertical travel speed 0.61 m/min
- Main motor 15 kW
- Arm vertical travel motor 3 kW
- Hydraulic clamping motor for spindle head & arm 0.75 kW
- Column clamping motor 0.75 kW
- Longitudinal clamping motor 0.75 kW
- Spindle head travel motor 0.25 kW
- Longitudinal travel motor 4 kW
- Overall Dimensions: 13,840 mm (L) x 1,540 mm (W) x 4,855 mm (H)
- Weight approximately 30 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
