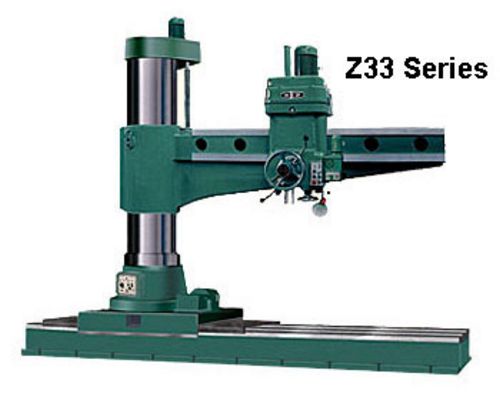

China Czech Z33100x70 Travelling Type Radial Drilling Machine


New, China Czech Z33100x70 Travelling Type Radial Drill

  • Longitudinal travels 7000mm
  • Spindle head cross travels 2580mm
  • Spindle travels 500mm
  • Arm vertical travels 1250mm
  • Arm swivel 360°
  • Distance of spindle to floor: max 3015mm; min 1355mm
  • Distance of spindle to column center: max 3150mm; min 570mm
  • Spindle taper MT6
  • Spindle speeds 8 - 1000 r/min, 22 steps
  • Spindle torque 2450 N.m
  • Spindle thrust 49 x 10³ N
  • Max drilling diameter 100mm
  • Feed rates 0.06 - 3.2 mm/min, 16 steps
  • Arm vertical travel speed 0.61 m/min
  • Main motor 15 kW
  • Arm vertical travel motor 3 kW
  • Hydraulic clamping motor for spindle head & arm 0.75 kW
  • Column clamping motor 0.75 kW
  • Longitudinal clamping motor 0.75 kW
  • Spindle head travel motor 0.25 kW
  • Longitudinal travel motor 4 kW
  • Overall Dimensions: 10,645 mm (L) x 1,540 mm (W) x 4,855 mm (H)
  • Weight approximately 26 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
