Zhongyang Sams Radial Drill

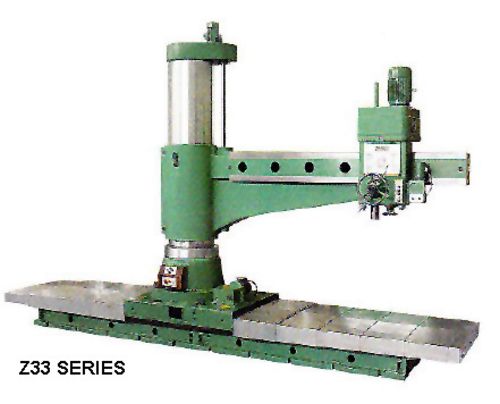

China Czech Z3350 Radial Drill

NDRSY014:

New, China Czech Z3350 Radial Drill

  • Maximum drilling diameter 50mm
  • Distance between spindle axis & column 350 - 1600mm
  • Spindle travel 315mm
  • Spindle taper No. 5
  • Range of spindle speeds 25 - 2000 rpm (16 steps)
  • Range of spindle feeds 0.04 - 3.2 mm/r (16 steps)
  • Travel of spindle head 1250mm
  • Column longitudinal traverse 2000 / 4000mm
  • Power of main motor 4 kW
  • Overall Dimensions: 6,820 mm (L) x 1,150 mm (W) x 3,025 mm (H)
  • Weight approximately 8.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
