Zhongyang Sams Radial Drill

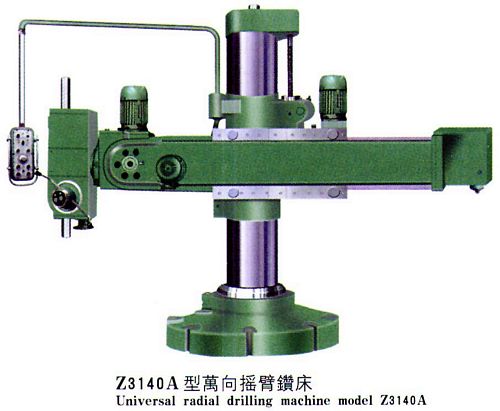

China Czech Z3140A Universal Radial Drill


New, China Czech Z3140A Universal Radial Drill

  • Maximum drilling diameter 40mm
  • Distance between spindle axis & column 850 - 1600mm
  • Spindle travel 315mm
  • Spindle taper No. 4
  • Range of spindle speeds 16 - 1250 rpm (16 steps)
  • Range of spindle feeds 0.06 - 1 mm/r (9 steps)
  • Travel of spindle head 750mm
  • Vertical travel of quill on column 900mm
  • Tilting angle of spindle head +- 90°
  • Power of main motor 3 kW
  • Overall Dimensions: 3,058 mm (L) x 1,240 mm (W) x 2,713 mm (H)
  • Weight approximately 4.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
