Zhongyang Sams Radial Drill


China Czech Z3040 x 12/1 Radial Drill

NDRSY003:

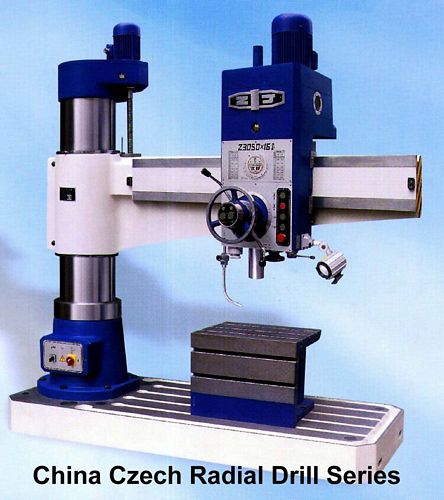

New, China Czech Z3040 x 12/1 Radial Drill

  • Maximum drilling diameter 40mm
  • Distance between spindle axis & column 350 - 1250mm
  • Distance between spindle nose and working surface of base plate 350 - 1250mm
  • Spindle travel 315mm
  • Spindle taper Morse No. 4
  • Range of spindle speeds 25 - 2000 rpm (16 steps)
  • Range of spindle feeds 0.04 - 3.2 mm/r (16 steps)
  • Table size 500 x 630mm
  • Travel of spindle head 900mm
  • Power of main motor 3 Kw
  • Overall Dimensions: 2,150 mm (L) x 1,070 mm (W) x 2,840 mm (H)
  • Weight approximately 3.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
