Zhongyang Sams Radial Drill

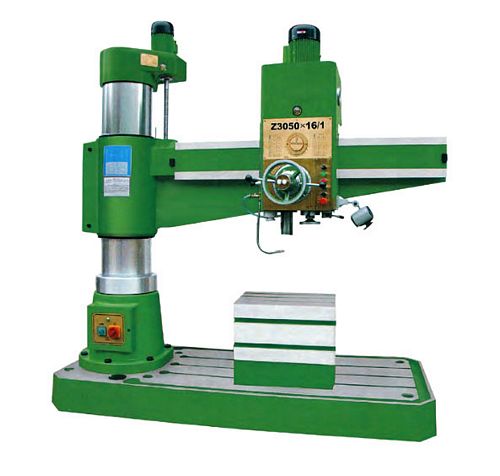

China RD5016 Radial Drilling Machine


New, China RD5016 Radial Drilling Machine

  • Max drilling capacity 50mm
  • Distance from spindle axis to column 350-1600mm
  • Distance from spindle nose to working surface of base 320-1220mm
  • Diameter of column 350mm
  • Spindle taper MT5
  • Spindle travel 315mm
  • Spindle speeds range 25-2000 r/min, off 16
  • Range of spindle feeds 0.04-3.2 mm/r, off 16
  • Dimension of worktable 630 x 500 x 500mm
  • Dimension of base 2400 x 1000 x 200mm
  • Main motor 4 kw
  • Overall Dimensions: 2,500 mm (L) x 1,060 mm (W) x 2,650 mm (H)
  • Weight approximately 3.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
