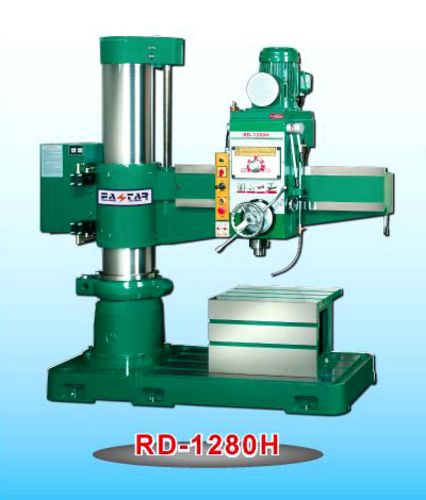

Taiwan RD-1280H Radial Drilling Machine


New, Taiwan RD-1280H Radial Drilling Machine

  • Drilling Capacity: 50mm steel / 60mm cast iron
  • Tapping Capacity: 30mm steel / 38mm cast iron
  • Boring Capacity: 85mm steel / 120mm cast iron
  • Spindle travel 250mm
  • Morse taper in spindle MT4
  • Spindle speed 44-1500 RPM (12)
  • Spindle feeds 0.05/0.09/0.15
  • Column diameter 300mm
  • Distance between spindle centre and column surface: max. 1250mm; min. 330mm
  • Horizontal travel of headstock 920mm
  • Distance between spindle nose and base: max. 1210mm; min 290mm
  • Overall height of column 2140mm
  • Machine height from floor (max.) 2585mm
  • Effective area of table (R x S x T) 650 x 500 x 410mm
  • Dimensions of base (L x W x K) 1800 x 800 x 170mm
  • Spindle motor 3 HP (4P x 8P)
  • Arm elevation motor 2 HP
  • Coolant pump 1/8 HP
  • Hydraulic motor 1 HP
  • Overall Dimensions: 2,290 mm (L) x 1,100 mm (W) x 2,230 mm (H)
  • Weight approximately 2.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
