Taiwan RD-1300H Radial Drilling Machine

NDRES003:

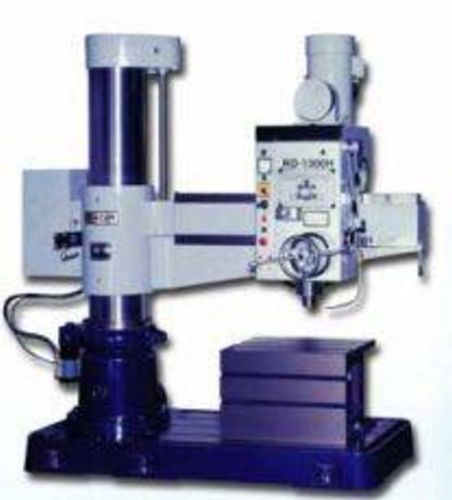

Taiwan RD-1300H Radial Drilling Machine

  • Drilling Capacity: 56mm steel / 66mm cast iron
  • Boring Capacity: 126mm steel / 186mm cast iron
  • Tapping Capacity: M50 / M60
  • Max. distance between spindle centre and column: 1410mm
  • Min. distance between spindle centre and column: 550mm
  • Max. distance between spindle centre and column face: 1260mm
  • Min. distance between spindle centre and column face: 400mm
  • Max. distance of spindle to base surface: 1230mm
  • Min. distance of spindle to base surface: 290mm
  • Column diameter 300mm
  • Height of column 2160mm
  • Max. machine height from floor 2585mm
  • Height of base 170mm
  • Spindle head longitudinal travel 920mm
  • Spindle travel 250mm
  • Morse taper in spindle MT5
  • Motor for main spindle 3.75 (5HP-4P/12P)
  • Motor for arm elevating 1.5 (2HP)
  • Motor for clamping device 0.75 (1HP)
  • Spindle feed rate  0.05-0.306mm/rev (Steps 6)
  • Spindle speed range 30-1500 RPM (60Hz), 25-1250 RPM (50Hz), (Steps 12)
  • Overall Dimensions: 2,250 mm (L) x 1,100 mm (W) x 2,220 mm (H)
  • Weight approximately 2.25 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
