Zhongyang Sams Radial Drill

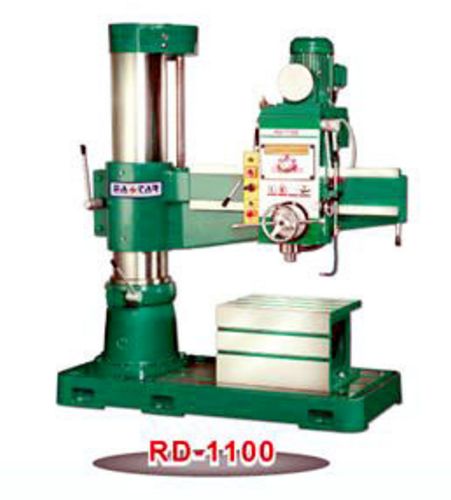

Taiwan RD-1100 Radial Drilling Machine

NDRES002:

New, Taiwan RD-1100 Radial Drilling Machine

  • Drilling Capacity: steel φ50 / cast iron φ60
  • Tapping Capacity: steel φ30 / cast iron φ36
  • Boring Capacity: steel φ85 / cast iron φ120
  • Spindle stroke / spindle taper: 250/MT4
  • Spindle speeds 44 - 1500 RPM (12 speeds)
  • Spindle feeds 0.05, 0.09, 0.15
  • Column diameter 300mm
  • Max. distance from spindle centre to column 1145mm
  • Min. distance from spindle centre to column 330mm
  • Horizontal travel of headstock 810mm
  • Max. distance from base to spindle 1230mm
  • Min. distance from base to spindle 540mm
  • Overall height of column 2160mm
  • M/C height from floor (max.) 2585mm
  • Dimension of base 1800mm (L) x 700mm (W) x 170mm (H)
  • Main drive motor 3 HP
  • Arm elevation motor 2 HP
  • Coolant pump 1/8 HP
  • Overall Dimensions: 2,010 mm (L) x 1,030 mm (W) x 2,230 mm (H)
  • Weight approximately 2.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial drill press, radial arm drilling machine, radial arm drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
