Pillar Drill

NDPTT010:

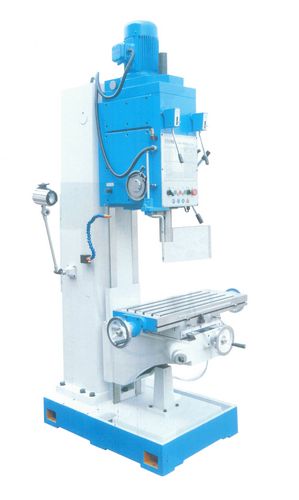

New, China Z5140B-1 Vertical Drilling Machine

Max drilling diameter 40mm
Spindle taper MT4
Spindle travel 250mm
Spindle box travel by manual 200mm
Spindle speeds 31.5-1400 rpm (12 steps)
Spindle feed 0.056-1.80 mm/r (9 steps)
Table size 800x320mm
Longitudinal (cross) travel 450/300mm
Vertical travel 300mm
Max distance between spindle and table 750mm
Main motor 3 kw
Overall Dimensions: 1,300 mm (L) x 1,200 mm (W) x 2,530 mm (H)
Weight approximately 1.4 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill, vertical drilling machine, pedestal drill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
