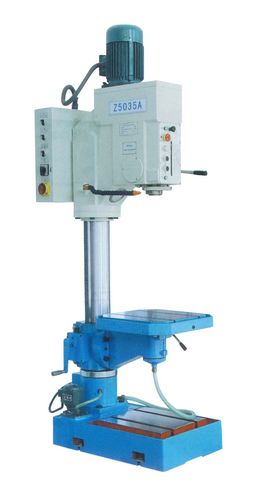

China Z5035A Vertical Drilling Machine

NDPTT006:

New, China Z5035A Vertical Drilling Machine

  • Max drilling capacity 35mm
  • Max tapping capacity M20
  • Distance from spindle axis to generating line of column 330mm
  • Max distance from spindle nose to worktable surface 610mm
  • Max distance from spindle nose to worktable surface of base 1150mm
  • Max spindle travel 150mm
  • Max adjustment of worktable and table rest 540mm
  • Swivel of table and table reat ±45°
  • Spindle bore taper Morse No. 4
  • Spindle speed 70-2600 r/min (12 steps)
  • Spindle feed range 0.1, 0.2, 0.3 mm/r (3 steps)
  • Column diameter 140mm
  • Effective working area of table: (LxW) 500x550mm
  • Effective working area of base plate: (LxW) 760x500mm
  • Dimension of T-slot of table and base plate: 2-14mm; 2-16mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
