Pillar Drill

NDPTT003:

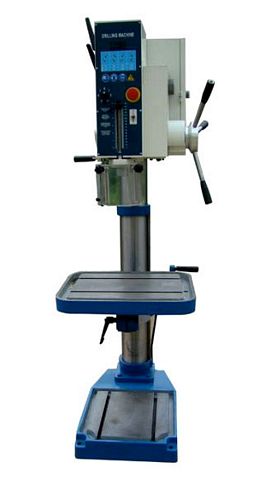

New, China T-35 Vertical Drilling Machine

Max drilling diameter 35mm
Spindle travel 150mm
Tapping capacity M18 (4 times per min)
Complete with electric auto feed
Morse taper MT4
Spindle speeds: (50 HZ) 75, 160, 265, 440, 535, 890, 1490, 3010
Spindle speeds: (60 HZ) 90, 190, 320, 640, 530, 1060, 1790, 3610
Feed speed 0.1-0.15-0.22-0.33 mm/rev
Motor: (50 HZ) 1.4-2 kw; (60 HZ) 1.6/2.2 kw
Weight approximately 290 kg

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill, vertical drilling machine, pedestal drill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
