China ZN5040B Column Type Vertical Drill

NDPSJ003:

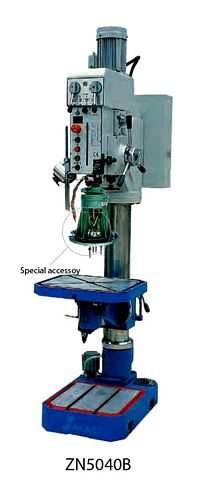

New, China ZN5040B Column Type Vertical Drill

  • Max drilling diameter (steel) 40mm
  • Max tapping diameter M24
  • Max travel of spindle 190mm
  • Max distance from spindle to column 340mm
  • Max distance from spindle end to worktable surface 665mm
  • Max distance from spindle end to surface of base worktable 1195mm
  • Max travel of worktable and bracket manual (mechanical) 570mm (450mm)
  • Swivel angle of worktable ±45°
  • Spindle taper bore MT4
  • Spindle speeds range 76-2065 rpm (12 steps)
  • Spindle feed range 0.1-0.3 mm/r (3 steps)
  • Dimension of worktable 520 x 440mm
  • Effective working area of worktable 405 x 395mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
