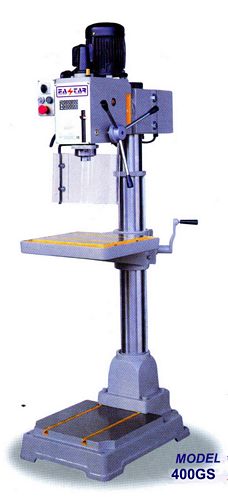

Taiwan GEM-400GS Gear Head Drilling & Milling Machine

NDPES002:

New, Taiwan GEM-400GS Gear Head Drilling & Milling Machine

  • Drilling capacity: cast iron 40mm, steel 32mm
  • Face milling capacity 76mm
  • End mill capacity 32mm
  • Spindle taper MT#3 or R-8
  • Spindle nose to table 650mm
  • Column diameter 115mm
  • Quill dia 75mm, quill travel 120mm
  • Swing 550mm
  • Head swivel 90 R & L
  • Main motor 0.75 P.S. 1 HP
  • Spindle speeds: (50Hz): 50, 100, 170, 370, 1250 rpm (4 P)                                      (60Hz): 60, 120, 200, 450, 850, 1500 rpm (4 P)
  • Table surface 415 x 455mm
  • Overall height 1880mm
  • T-slot size 14mm
  • Overall Dimensions: 740 mm (L) x 540 mm (W) x 1,955 mm (H)
  • Net weight 290 kgs / Gross weight 305 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
