Taiwan GEM-400GCT Gear Head Milling & Drilling Machine

NDPES001:

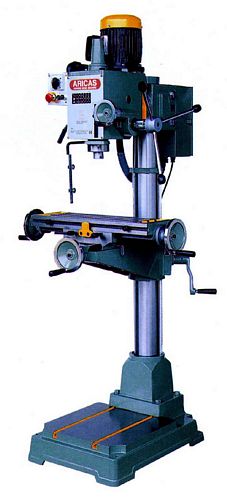

New, Taiwan GEM-400GCT Gear Head Milling & Drilling Machine

  • Drilling capacity: Cast Iron 40mm, Steel 32mm
  • Face milling capacity 76mm
  • End milling capacity 32mm
  • Spindle taper MT#3
  • Spindle nose to table 580mm
  • Column diameter 115mm
  • Quill diameter 75mm
  • Quill travel 120mm
  • Swing 550mm
  • Head swivel 90° R&L
  • Main motor 0.75 P.S. 1 HP
  • Spindle speeds (50Hz) 50, 100, 170, 370, 1250 rpm (4P)
  • Table surface 585 x 190mm
  • Cross travel of table 210mm
  • Longitudinal travel of table 340mm
  • Overall height 1880mm
  • T-slot size 14mm
  • Overall Dimensions: 740 mm (L) x 780 mm (W) x 1,955 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
