Zhongyang Sams Pillar Drill

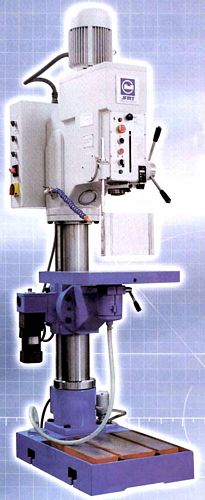

China Z5040 Gear Head Vertical Drilling & Tapping Machine

NDPEA003:

New, China Z5040 Vertical Drilling & Tapping Machine

  • Max Drilling Capacity 40mm
  • Max Thread Cutting M27
  • Quill Stroke 180mm
  • Spindle to Column Distance 360mm
  • Max Spindle to Table Distance 600mm
  • Max Spindle to Foot Distance 1200mm
  • Max Adjustment of Work Table and Table Rest 560mm
  • Swivel of Table +/- 45 degrees
  • Spindle Bore Taper MT4
  • Spindle Speeds 42-2050, off 12
  • Feed Range 0.07, 0.15, 0.26, 0.40 mm/rev
  • Effective Table 510 x 380mm
  • Base Plate Dimensions 450 x 440mm
  • Two-Speed Main Motor: 2.2kW @ 960rpm, 2.8kW @ 1440rpm
  • Column Diameter 160mm
  • Overall Dimensions: 1,080 mm (L) x 580 mm (W) x 2,330 mm (H)
  • Weight approximately 680 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
