Zhongyang Sams Pillar Drill


China D5-35 Vertical Drilling Machine

NDPAM006:

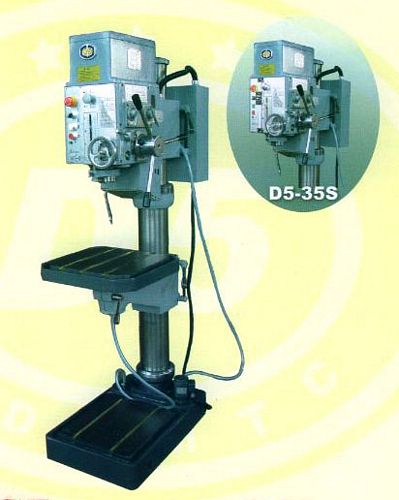

New, China D5-35 Vertical Drilling Machine

  • Max drill diameter 35mm
  • Distance from axis of spindle to generating line of column 300mm
  • Max distance from spindle nose to working surface 800mm
  • Max distance from spindle nose to working surface of base plate 1260mm
  • Max travel of spindle box 270mm
  • Max travel of spindle 150mm
  • Max travel of table 550mm
  • Spindle hole taper Morse No. 4
  • Range of spindle speeds: 80-125-160-250-320-400-500-630-800-1250-1600-2500 RPM
  • Steps of spindle speeds 12 steps
  • Range of spindle feeds: 0.08-0.12-0.20-0.32 mm/rev
  • Steps of spindle feeds 4 steps
  • Effective working area of table (L x w)390 x 390mm²
  • Effective working area of base 420 x 374mm²
  • Power 1.3 / 1.8 kw
  • Speed 1000 / 1500 RPM
  • Overall Dimensions: 920 mm (L) x 515 mm (W) x 1,960 mm (H)
  • Weight approximately 440 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
