Zhongyang Sams Pillar Drill


China ZS-40BPS Gear Head Auto-Feed Drilling Machine

NDPAM005:

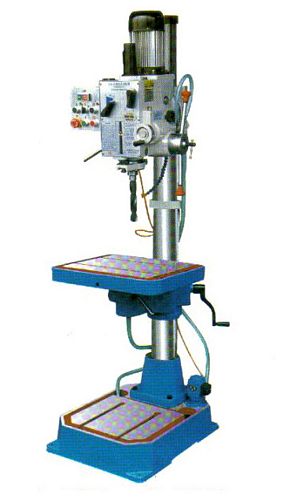

New, China ZS-40BPS Gear Head Auto-Feed Drilling Machine

  • Max drilling capacity: Cast iron 40mm; Steel 32mm
  • Max tapping capacity: Cast iron M32; Steel M24
  • Diameter of column 115mm
  • Spindle travel 110mm
  • Distance spindle axis to column generating line 261.5mm
  • Max distance spindle nose to table 745mm
  • Max distance spindle nose to base 1245mm
  • Spindle taper MT4 or R8
  • Spindle speed 50-1250 r/min, off 6
  • Spindle feeds 0.12, 0.18, 0.25 mm/r
  • Dimension of worktable surface 540 x 470mm
  • Table travel 515mm
  • Dimension of base 635 x 460mm
  • Overall height 1760mm
  • Main motor 750 W
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
